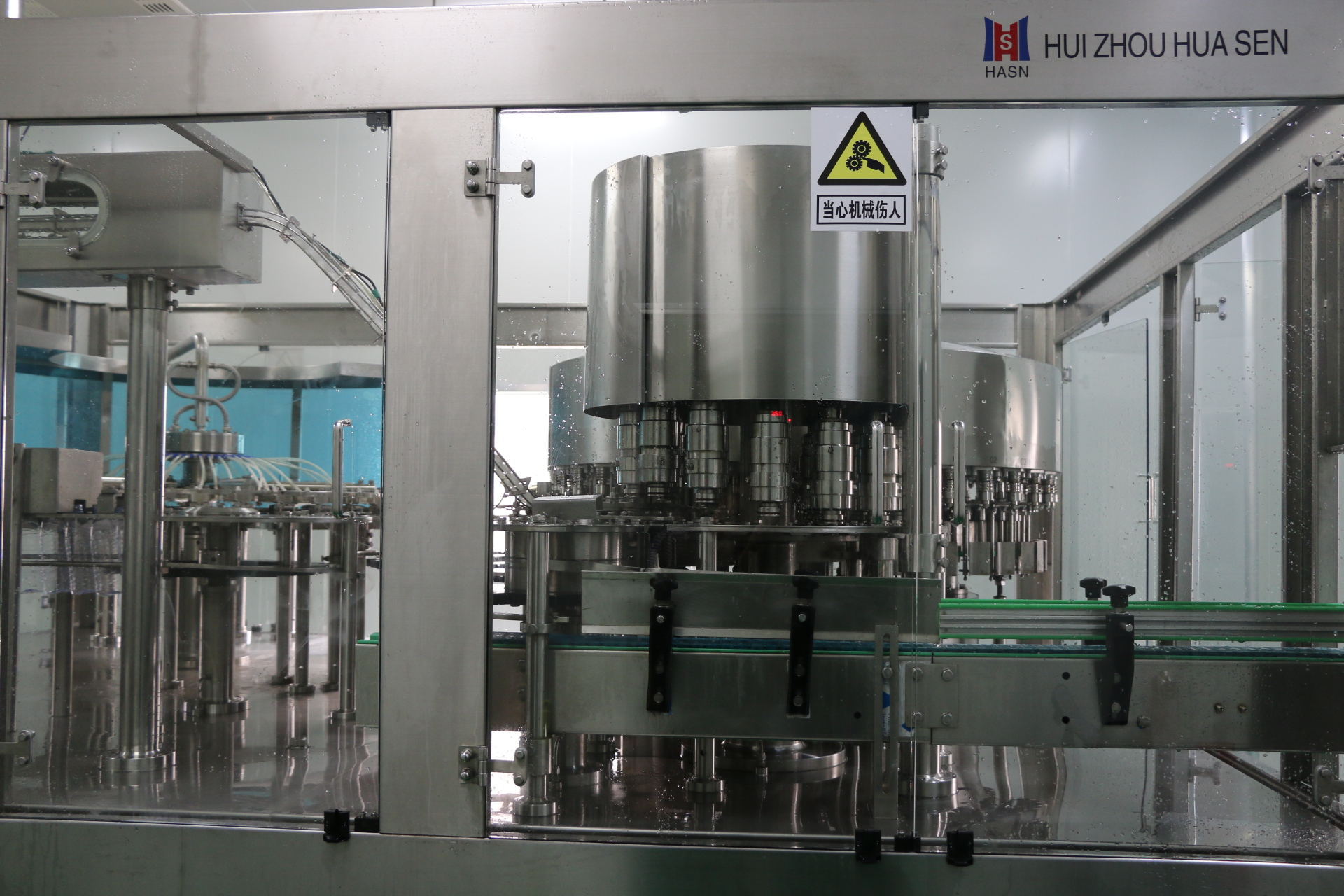

HSG全自动含气饮料灌装机
产品详情



等压灌装的关键技术在于灌装工艺同设备精度,经过多年的研发,本公司已成功开发出在常温状态下良好工作的HSG系列全自动含气饮料液装机,与本厂生产的汽水混合机配合,具有原液混合充分、均匀,灌装过程中不漏气、泄压后不冒泡,封口后压力充足的特点。无瓶不灌装,灌装量精确。该机与物料接触全部为316不锈钢,无工艺死角,清洗方便。


The key technology of isobaric filling lies in the precision of filling technology and equipment. After years of research and development, the company has successfully developed HSG series automatic filling machine for gas-containing beverage which works well at normal temperature. It cooperates with the steam-water mixer

produced by the factory, and has the advantages of sufficient and uniform mixing of raw liquor, no leakage and leakage in the filling process. The pressure is not bubbled and the pressure is sufficient after sealing. No bottle, no filling, accurate filling. The contact between the machine and the material is 316 stainless steel, without process dead angle and easy cleaning.





产品特点:

·主机采用人机界面自动控制技术,关键电器元件均采用国际知名品牌;

·悬挂式卡瓶口结构、変換瓶型只需调节输送带高度及少量附件,方便快捷;

·旋盖头采用磁力扭转式装置,确保封盖质量,且不会损坏瓶盖;

·采用高效的理盖系统,具有完美的喂盖技术与保护装置。

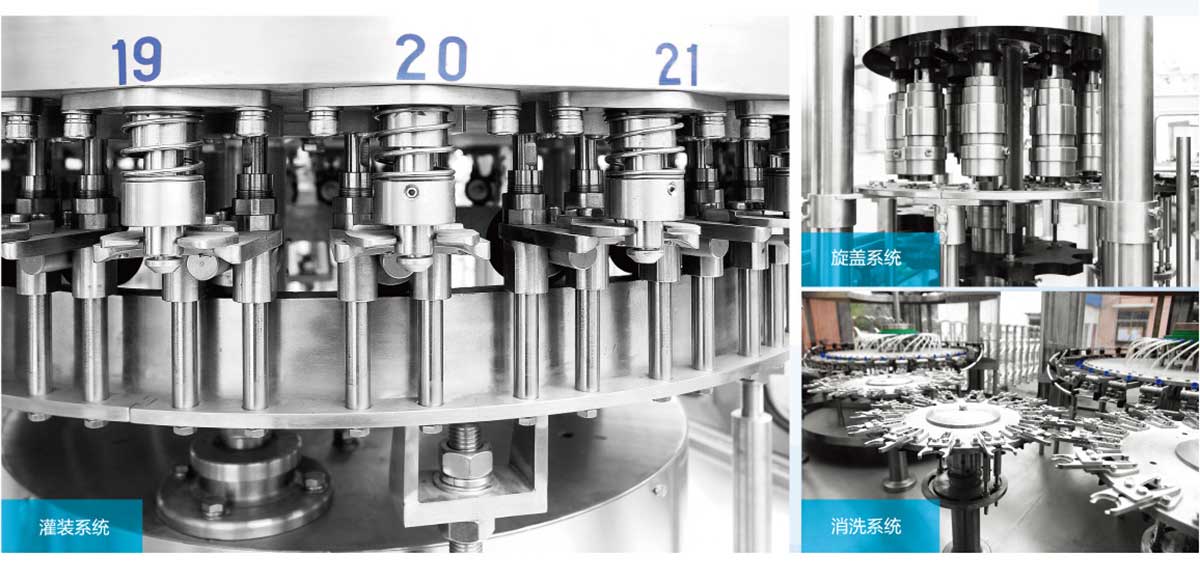

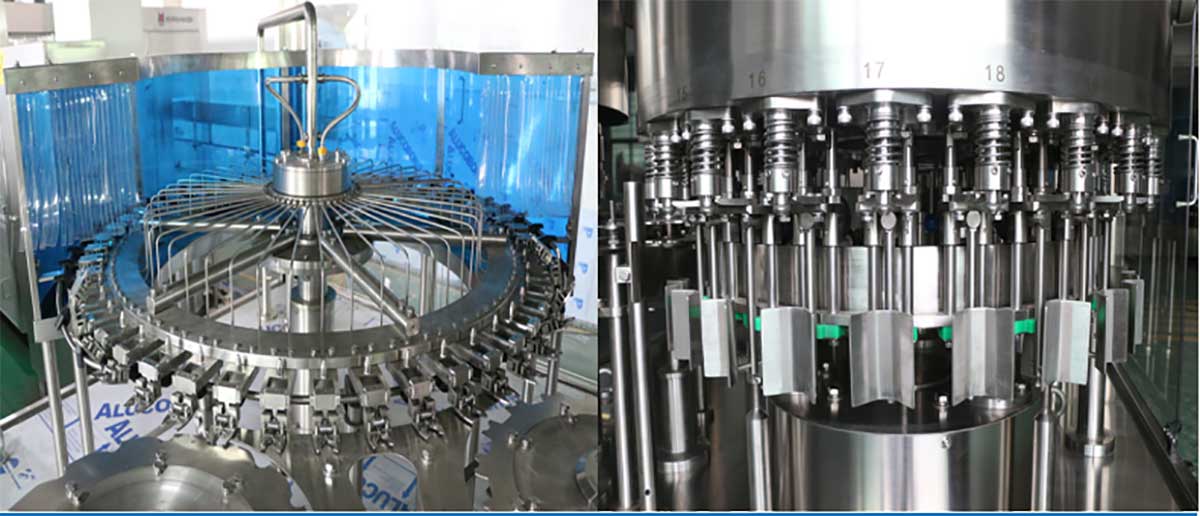

·洗瓶采用机械手夹瓶翻转180°冲洗,可有效避免瓶子受损与二次污染;

·设备广泛适用于高度≤230-330mm,瓶身≤95,容量350-1500ml的各种瓶型。


Product features:

·The host computer adopts man-machine interface automatic control

technology, and the key electrical components are internationally famous

Brands.

·The suspension type bottle mouth structure and the change bottle type

only need to adjust the height of the conveyor belt and a small number of

accessories, which is convenient and quick.

·The magnetic head twisting device is adopted to ensure the quality of the

cover and will not damage the bottle cap.

·Adopting the efficient capping system, it has perfect cover technology and

protection device.

·The bottle washer is flushed by 180 degrees, which can effectively prevent

bottles from being damaged and two times polluted.

·The equipment is widely applied to all bottle types with height less than

230-330mm, bottle body less than 95 and capacity 350-1500ml.


技术参数

Technical parameter


型号:Model

HSG24-18-8

生产能力 Throughput

3000-5000瓶小时

灌装容量Filling volume

0.35-1.5L

瓶径 Bottle diameter

Φ50100(mm)

瓶高 Bottle height

150-330(mm)

灌装精度 Filling Precision

3%

主电机功率 Main motor power

2.2kw

额定电压 Rated voltage

AC380V三相四线

清洗用水 Cleaning watera

<0.8m³

外形尺寸 Shape size

1700*2200*2100

重量weight

3000kg


型号:Model

HSG24-24-8

生产能力 Throughput

3000-8000瓶小时

灌装容量Filling volume

0.35-1.5L

瓶径 Bottle diameter

Φ50100(mm)

瓶高 Bottle height

150-330(mm)

灌装精度 Filling Precision

3%

主电机功率 Main motor power

3.0kw

额定电压 Rated voltage

AC380V三相四线

清洗用水 Cleaning watera

<0.8m³

外形尺寸 Shape size

2300*2060*2100

重量weight

3500kg


型号:Model

HSG32-32-12

生产能力 Throughput

5000-10000瓶小时

灌装容量Filling volume

0.35-1.5L

瓶径 Bottle diameter

Φ50100(mm)

瓶高 Bottle height

150-330(mm)

灌装精度 Filling Precision

3%

主电机功率 Main motor power

4.0kw

额定电压 Rated voltage

AC380V三相四线

清洗用水 Cleaning watera

<1.2m³

外形尺寸 Shape size

2450*2250*2100

重量weight

4800kg


型号:Model

HSG38-38-14

生产能力 Throughput

5000-12000瓶小时

灌装容量Filling volume

0.35-1.5L

瓶径 Bottle diameter

Φ50105(mm)

瓶高 Bottle height

150-330(mm)

灌装精度 Filling Precision

3%

主电机功率 Main motor power

5.5kw

额定电压 Rated voltage

AC380V三相四线

清洗用水 Cleaning watera

<1.5m³

外形尺寸 Shape size

2450*2600*2100

重量weight

5600kg
